Specifications
Frame
Tectonic T1, aluminum, 26" dirt jump geometry, 9 mm x 135 mm dropout, replaceable hanger

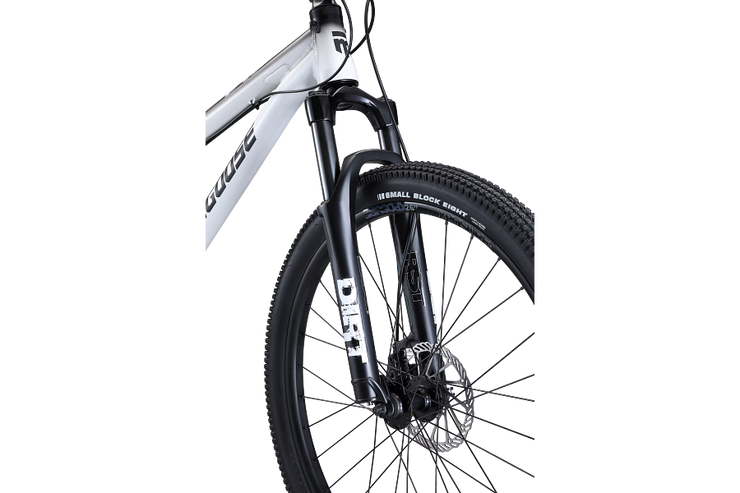

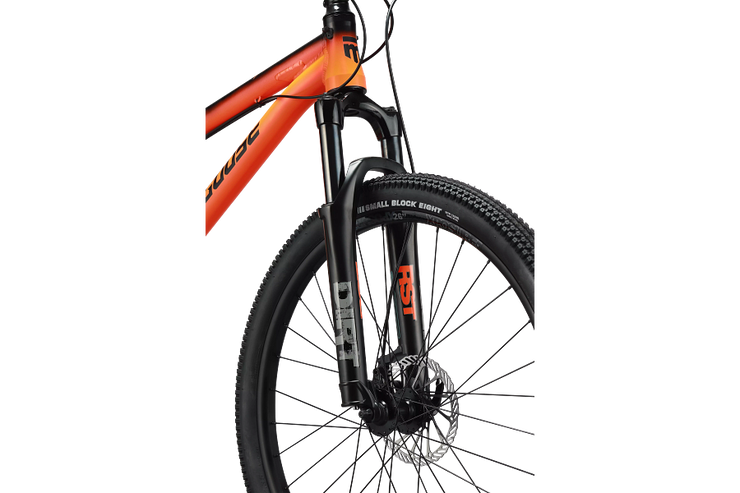

Fork
RST DIRT-T, 26", aluminum steerer, 9 mm x 100 mm, thru axle, 100 mm travel
Crank
Samox AF15-D36S, aluminum, 36T
Chain
KMC Z99
Bottom Bracket
Samox, cartridge, 3-piece, threaded 68 mm shell
Shifters
Shimano Altus SL-2000, 9
Rear Cog
Sunrace, 9-speed, 11-36T

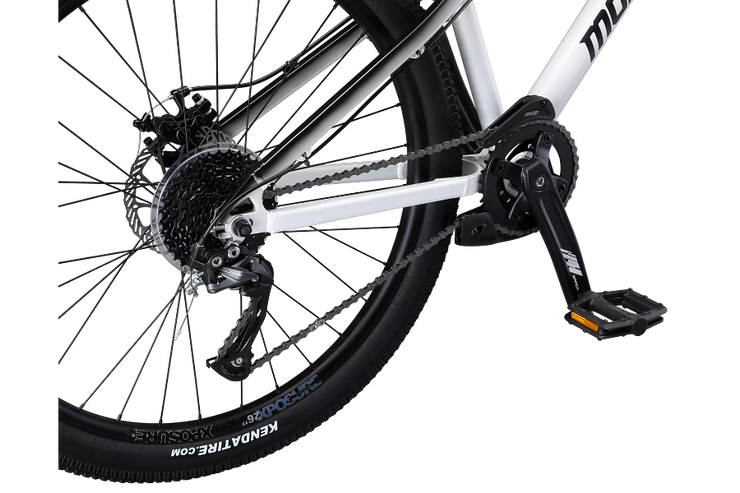

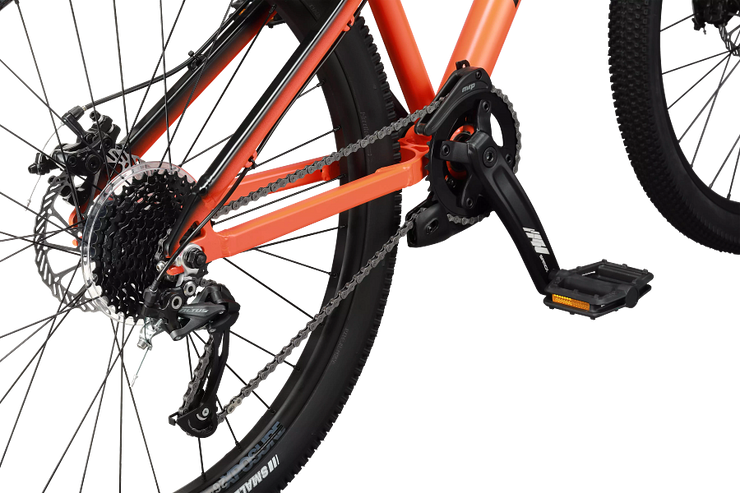

Rear Derailleur
Shimano Altus RD-M2000
Rims
Xposure, aluminum double wall, 26 mm ID, 32H
Front Hub
Xposure, aluminum, ball bearing
Rear Hub
Xposure, aluminum, ball bearing, 9 mm x 135 mm, 32H, 6-bolt
Spokes
14G, steel
Tires
Kenda Small Block, 26 in x 2.35 in, wire bead
Pedals
Nylon
Brakes
Mechanical, aluminum, 160 mm rotor

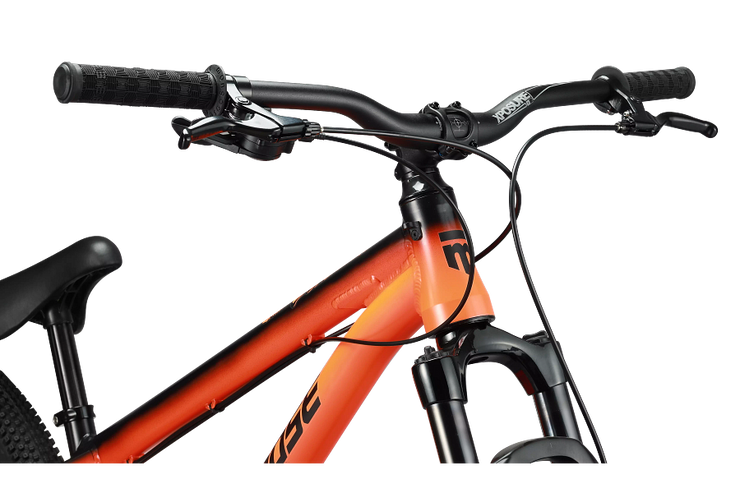

Handlebar
Xposure double-butted, aluminum, 750 mm width, 30 mm rise, 31.8 mm clamp
Stem
Xposure melt forged aluminum, threadless, 40 mm, 7°, 31.8 mm clamp
Headset
Threadless, ZS44/ZS44, retainer bearing
Seat Post
Xposure, aluminum, 201 mm, integrated saddle, 27.2 mm

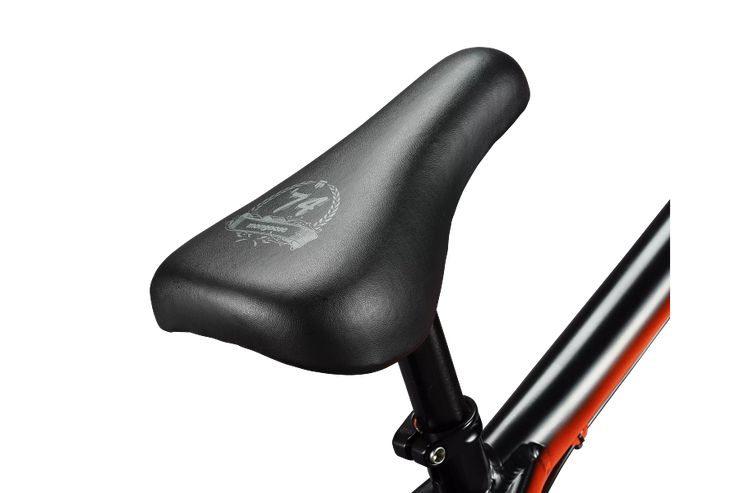

Saddle
Mongoose Dirt jump, integrated rails
Grips
Mongoose Hive, single density
Geometry & Sizing
